Mitre Shooting Board

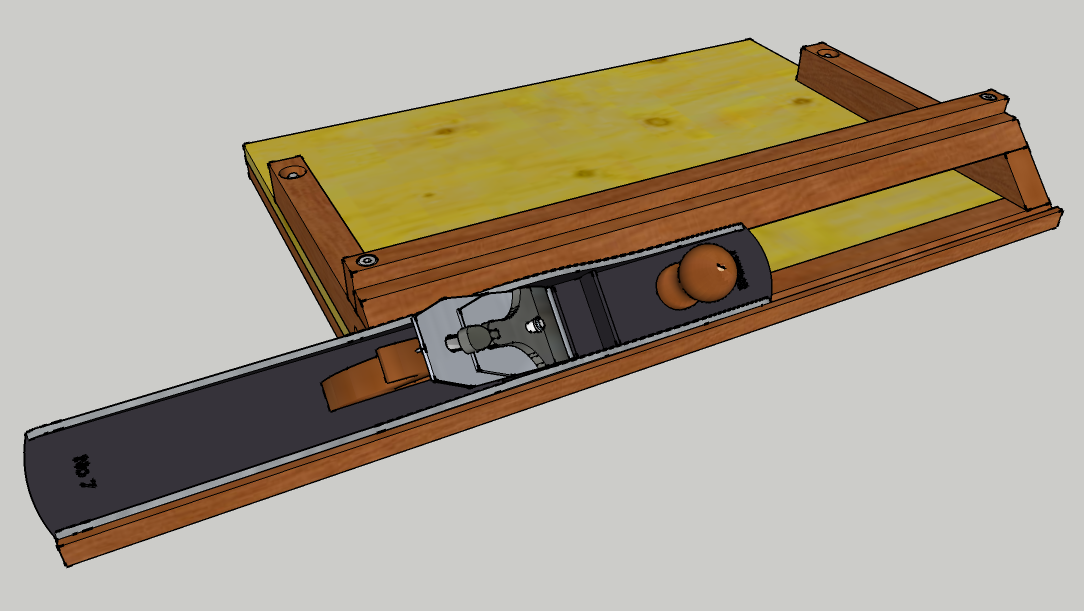

For those without SketchUp access, here are some drawings of my mitre shooting board, with dimensions. The dimensions should be tailored to fit both the plane and the size of work you intend doing (mine is for no.4½ / 5½ / 6 / 7 planes).


Front

Side (Left)

Top
Bolt Locations Cutaway
